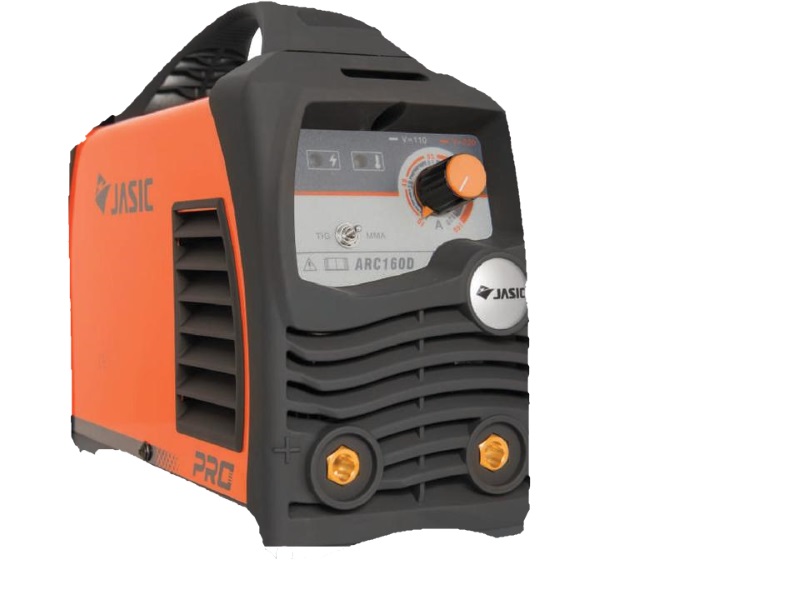

Inverter - Dual Voltage

Key Features
¦ IGBT Inverter technology - for the professional user
¦ MMA/DC Lift TIG
¦ Hot start ignition, anti stick
¦ 40 Khz inverter frequency, high-efficiency
¦ Self adaptive arc force
¦ Compact size, lightweight and modern design
¦ Heavy duty 35-50mm dinse sockets
¦ Easy arc starting, minimal spatter
¦ Stable and reliable arc
¦ Auto-compensation for voltage fluctuation
¦ Advanced single PCB construction
¦ Generator friendly**
¦ Can weld electrodes of up to 4mm
Technical Data
Input Voltage 95-265V - 50/60 Hz
AC 110V - 50/60 Hz AC 230V - 50/60 Hz
Ieff (A) 18.3 12.2
Input Power (kVA) 3.7 5
Current Range (A) 10 - 125 10 - 160
Duty Cycle @ 40°C 125A @ 35% 160A @ 35%
No-Load Voltage (V) 68
Efficiency (%) 85
Power Factor 0.99
Protection/Insulation Class IP21/F
Dimensions (LxWxH mm) 365 x 135 x 280
Weight (Kg) 6.4
